High speed powder ribbon blender features ribbons as core mixing components. The inner and outer ribbons rotate at high speed in opposite directions, enabling powder to circulate axially, shear and diffuse radially, thus achieving efficient mixing. It boasts high mixing uniformity, few dead corners, and adapts to large-capacity powder processing. Widely used in chemical, building materials and other industries, it is especially suitable for handling easy-to-agglomerate powders or those with large specific gravity differences, integrating mixing and conveying functions.

Horizontal Ribbon Mixer

Main features:

Horizontal tank body, need small space but more capacity
Dual screw structure-the inner screw push the material from central to sides and the outer screw push the material from sides to the center to make the material effective mixing
Gear box drive the auger shaft , low noise and low malfunction
U-Shape tank bottom, better for material discharge and cleaning

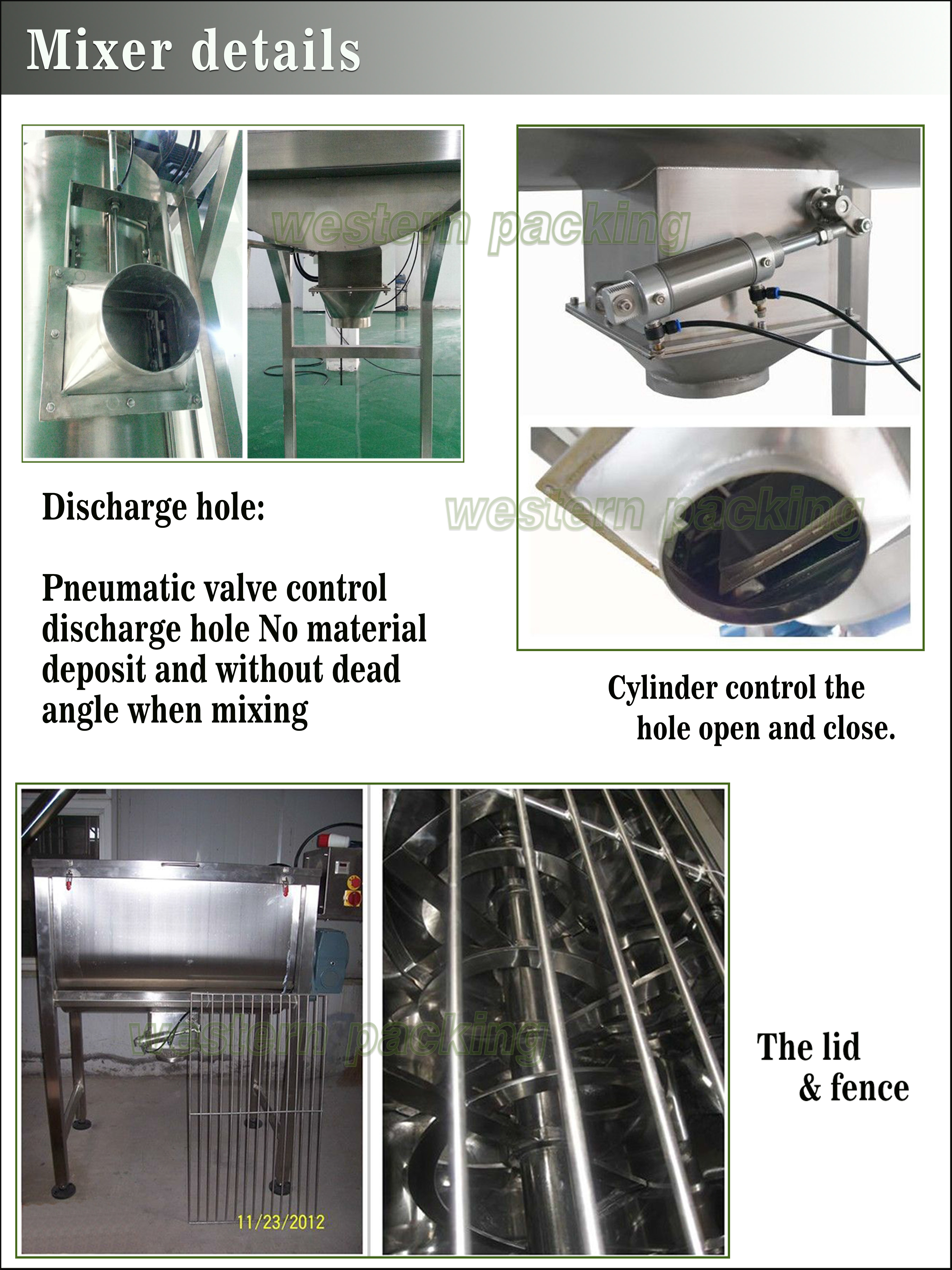

Pneumatic cylinder or manual butterfly valve to control the discharge exit
All structure made by SS 304 material except motor
Control panel simple and easy operate .With timer to set the mixing time
It can be add the sprayer to mixer the liquid material for color or perfume, need extra cost

GENERAL DESCRIPTION：

This machine is used to blend dry powder or small granule by two steel ribbons inside. The two ribbons
will drive powder flow from in different direction and turn up and down, so the powder will get equally
mixed in short time. All the machines are made of SUS 304. Extra device for heating or cooling, liquid
spraying is a available. It’s widely used in food, chemical, pharmaceutical powder industries.

/Model	WPW-300	WPW-500	TDW-1000	TDW-1500	TDW-2000	TDW-3000
Effective Volume	300L	500L	1000L	1500L	2000L	3000L
Fully Volume	420	650	1350	2000	2600	3800
Fullness Coefficient	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Turning Speed	53rpm	53rpm	45rpm	45rpm	39rpm	39rpm
Total Weight	660kg	900kg	1380kg	1850kg	2350kg	2900kg
Total Power	5.5kw	7.5kw	11kw	15kw	18.5kw	22kw
Length（L）	1530	1550	1900	2150	2300	2420
Width（W）	1250	1350	1800	2020	2150	2300
Height（H）	1300	1350	1580	1700	1850	1980
Power Supply	3P AC208-415V 50/60Hz

Deploy List

Material contact part 316 S/S and the bodyshell-304 stainless steel.
